TRLAP-601

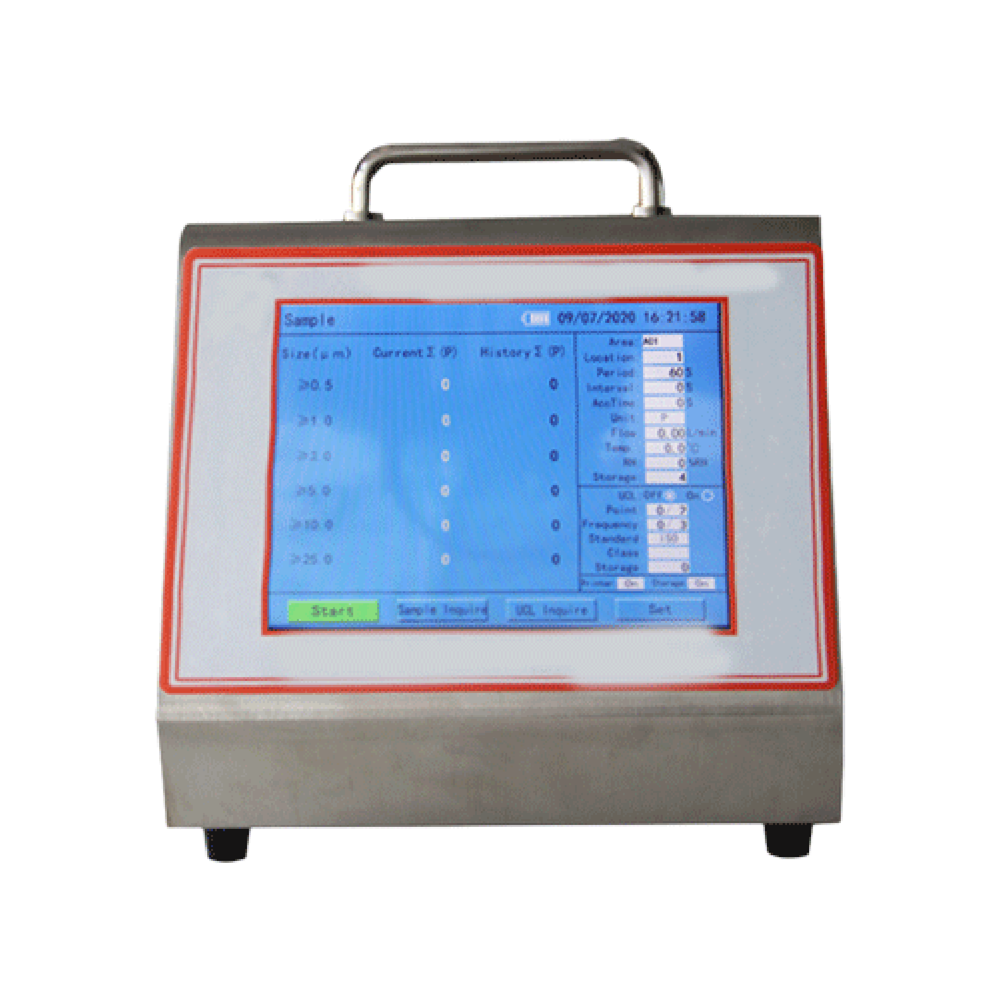

Laser Airborne Particle Counter TRLAP-601

Overview

Laser Airborne Particle Counter TRLAP-601is a six-channel control unit, with a high-quality stainless steel material with durability and corrosion resistance. Built with an LCD,shows the parameters range clearly. Equipped with the built-in thermal sensitive printer for direct printing mechanism.Havinga flow rate of 28.3 L/ min.

Features
  • - Particles detect the presence using a laser sensor
  • - It is constructed of high-quality stainless steel
  • - It is long-lasting and corrosion-resistant
  • - Equipped with an LCD to display the parameter range clearly
  • - It has an in-built thermal sensitive printer for direct printing
  • - It has a six-channel control unit
Specifications
Flow Rate 28.3 L/min
Size Channels 0.3, 0.5, 1, 3, 5, 10 µm
Humidity 20% to 75 % RH
Atmospheric Pressure 86 Kpa to 106 Kpa
Operating Time 3 hours
Light Source Laser Diode
Display LCD
Sample Time 110 min
Zero Count 10 min
Printer Built-in Thermal
Data Storage 1000 Samples
Maximum Rated 35000 particles/ L
Location Labels 0 to 999
Power Source DC 16.8V
Maximum Consumption 48 W
Weight 7.5 Kg
Applications

It is widely used in medical, optical, chemical, food, cosmetics, e-health, biological products, aerospace, and other industries.
