TRHL-604

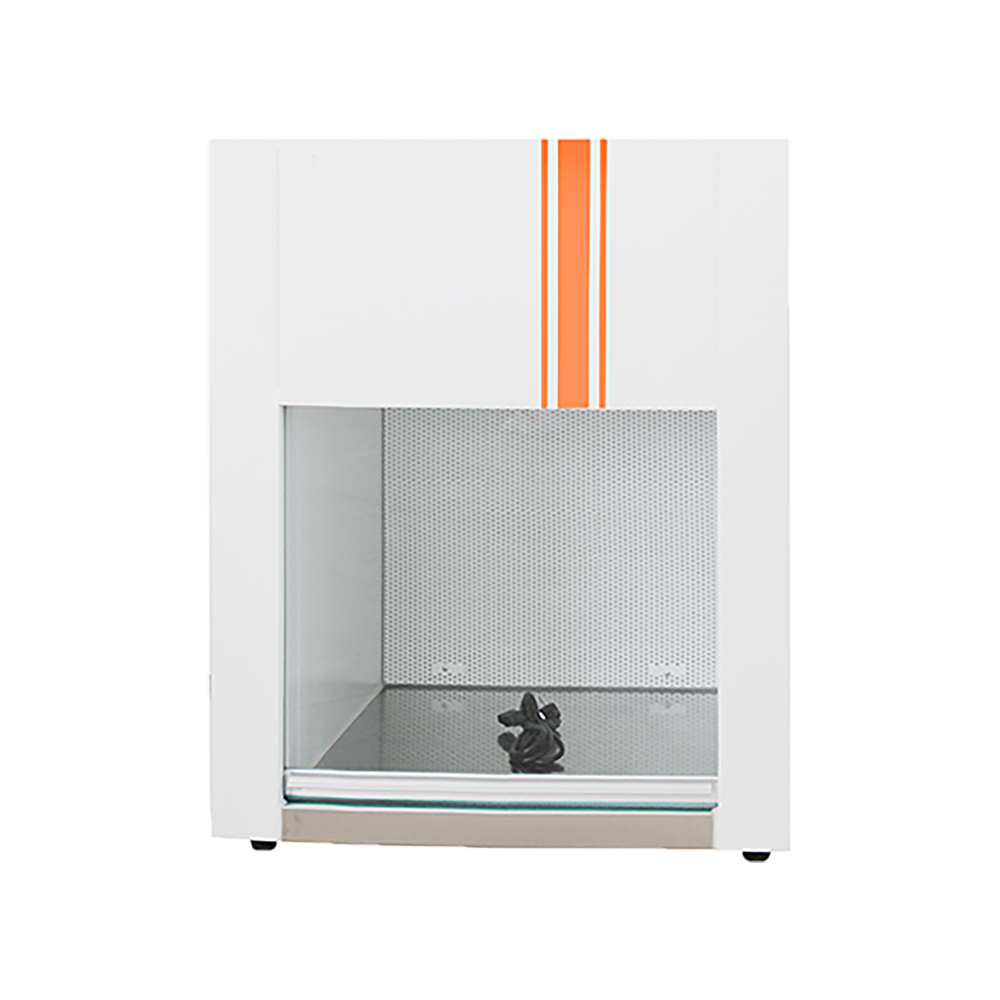

Horizontal Laminar flow cabinet TRHL-604

Overview

Horizontal Laminar flow cabinet TRHL-604 is a local purification unit used in a dust-free and aseptic clean environment. A similar enclosure creates a particle-free working environment by passing air through a filtration system. It comes with an easy-to-use quasi-glass damper. Comes with a stainless steel working area, the Specification of the ultraviolet lamp is 1/20 W. It provides in a small and exquisite manner. It is presented with the air supply mode and supplies through both horizontal and vertical manner.

Features
  • - Cold-rolled plate welding equipped throughout the equipment
  • - Comes with a stainless steel working area
  • - It is presented with a HEPA filter
  • - Built with a glass sliding door, and with a UV lamp and fluorescent lamp
  • - The surface electrostatically sprayed
  • - The air supply mode into the vertical and horizontal air supply
  • - Controlled by a simple to use quasi-closed glass damper
  • - It is small and exquisite
  • - It can operate freely on the general workbench, making it ideal for use in small studios
  • - A remote switch with fast controls the fan system
Specifications
Cleanliness Level Class 100 @ ≥ 0.5μM
Number Of Colonies ≤0.5pcs/dish hour (Φ90mm culture plate)
Average Wind Speed 0.25 to 0.45 m/s (Fast and slow)
Noise ≤62dB (A)
Vibration Half Peak ≤0.5μM (x, y, z-direction)
Illuminance ≥300 Lx
Power Supply AC single-phase220V/50 Hz
Working Area 690×350×490 mm
Overall Dimension 850×530×850 mm
High-Efficiency Filter Specification And Quantity 470×455×38×1
Specification And Quantity Of Fluorescent Lamp/Ultraviolet Lamp 12W×1/20W×1
Applications

Used in the aseptic and dust-free clean environment in the fields of medical and health, biological engineering, scientific experiment, and so on.
