Overview

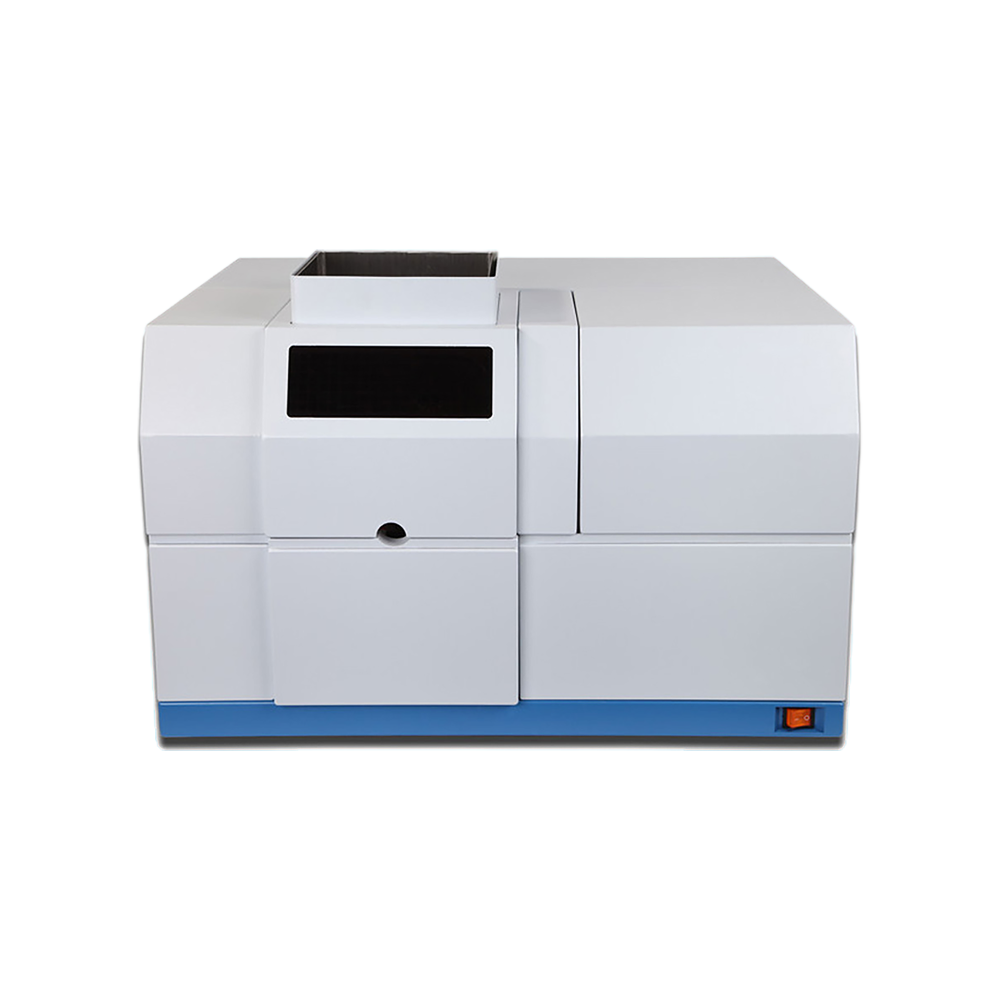

Atomic Absorption Spectrophotometer TRAS-701is completely controlled by a computer. It has a fully automatic control system with advanced temperature control technology of a graphite furnace. With a wavelength range of 190 to 900 nm. Providing a spectral bandwidth of 0.1, 0.2, 0.4, 1.0, and 2.0 nm. The setting of the background deduction method. The fast heating capacity can improve the elements' flexibility even more. . It presents the hollow cathode lamp in its operational state. It is a safe, dependable, and convenient flame system with a multi-functional software workstation.

Features

• - The hollow cathode lamp's operational state
• - Wavelength searching and peak search are completely automatic
• - The integrated floated optical platform design improves the optical system's shock resistance and stability when using the optical signal for an extended period
• - Eight light stands can be changed automatically while simultaneously preheating and optimizing the eight lights
• - Adjustable position: It can automatically set the front and rear positions, as well as the best height for the flame burner
• - The setting of the background deduction method
• - Background self-absorption and the Deuterium lamp
• - Data processing, super-strong database with over 500 data self-storage and cut-off storage functions
• - can hold the analysis results in form of a Spreadsheet, and the test procedure and result can be called at random
• - The flame results demonstrated and the emissions technique are two methods for measuring
• - Result printing: parameter printing, data result printing, and diagram printing
• - It has fully automatic controlled, with the help of the software
• - The selection of lamp elements, Front-to-rear lifter adjustment (up/down)
• - Re-adjustment of optical energy, selecting the slit, Determination of wavelength scanning and peak searching, sixth, choosing an atomizer
• - Full safety chain protection, warning and automatic protection against incorrect burner, gas leakage, air under voltage, and abnormal flameout
• - Managing the flow of gas
• - Auto-flaming and extinguishing
• - Temperature control technology of graphite furnace advanced
• - Introducing PID technology can effectively overcome the influence on the temperature rising procedure
• - The combination of the 3ms/time fast sampling technique can result in more accurate and dependable testing data
• - The fast heating capacity can improve the elements' flexibility even more
• - Use a standard 220V power source instead of a 380V dynamic power source
• - The maximum procedure heating capacity setting of 20 levels can make testing multiple samples more efficient and comfortable
• - Three grades of adjustable gas flow can be tailored to meet a variety of application requirements
• - Can provide a timely warning when the gas and water are turned off and there is insufficient gas and water, thereby avoiding equipment damage and measurement error
• - Safe, reliable, and convenient flame system
• - EPC can more precisely control the flow of acetylene (C2H2) and is a type of system that is also simple to operate
• - A well-functioning Tomi Ziti on the system allows for greater sensitivity
• - The entire operating system is highly secure because the fire safety system scan alert for the fluctuation
• - It will also automatically turn off the gas and prohibit temper tantrums
• - Protects the operating personnel and equipment from harm and damage
• - Multi-functional software workstation, a working computer that is supported WINDOWS XP/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000/NT/2000
• - The extensive menu makes it easy for customers to use
• - Easy conversion between different menus simplifies the operation
• - A variety of analytical correction methods gives users more options
• - The basic default parameter settings allow even inexperienced users to perform routine operations
• - Flexible storage, editing, and printing methods provide the most support to the user
