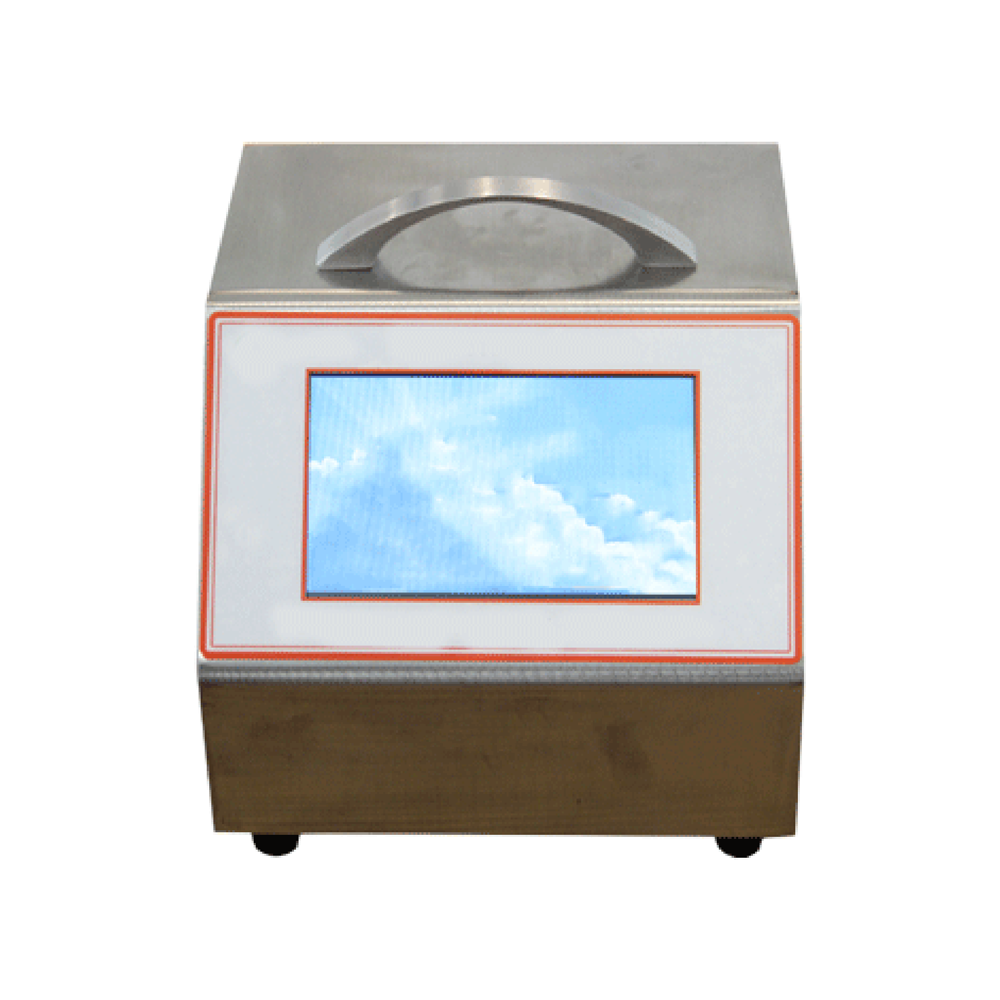

Airborne Particle Counter TRAP-601
Website: www.labotimes.com
Email: info@labotimes.com
Airborne Particle Counter TRAP-601is a six-channel control unit that includes a thermal built-in printer for direct printing of pre-recorded and current data for user convenience. The software generates data files for viewing or exporting to a computer Excel spreadsheet. The counter can store up to 1000 data samples. It has an LCD that displays the parameter ranges and particle concentration of up to 2.83 l/m.
| Flow Rate | 2.83L/min (Imported Pump) |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Maximum Rated Particle Concentration | 35000 particles/L ( μm ) |
| Environmental Temperature | 10 ˚C t035 ˚C |
| Light Source | Laser Diode (30, 000 hours Mean Time Between Failures) |
| Sample Time | 1 to 10min (Selectable) |
| Printer | Built-in Thermal Printer |
| Zero Count | 10min |
| Location Labels | 0 to 999 |
| Humidity | 90 to 95%RH |
| Data Storage | 1000 Samples |
| Display | LCD |
| Atmosphere Pressure | 86 Kpa to 106Kpa |
| Operating Time | 8 hours |
| Maximum Consumption | LCD |
| Power Source | 10W |
| Weight | AC 220V ± 10%,50Hz |
It is widely used in microelectronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, and aerospace, among other fields.
